Product Overview

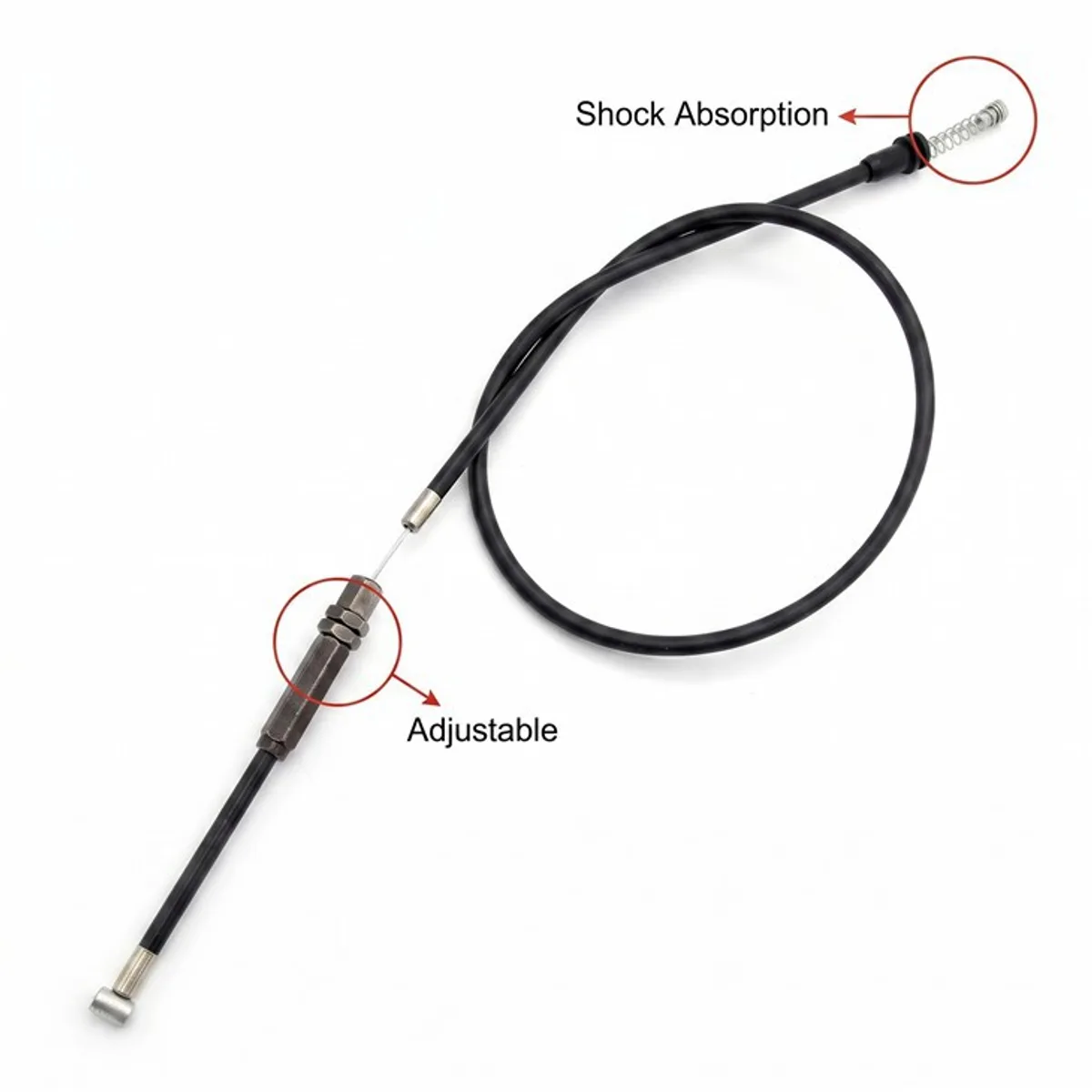

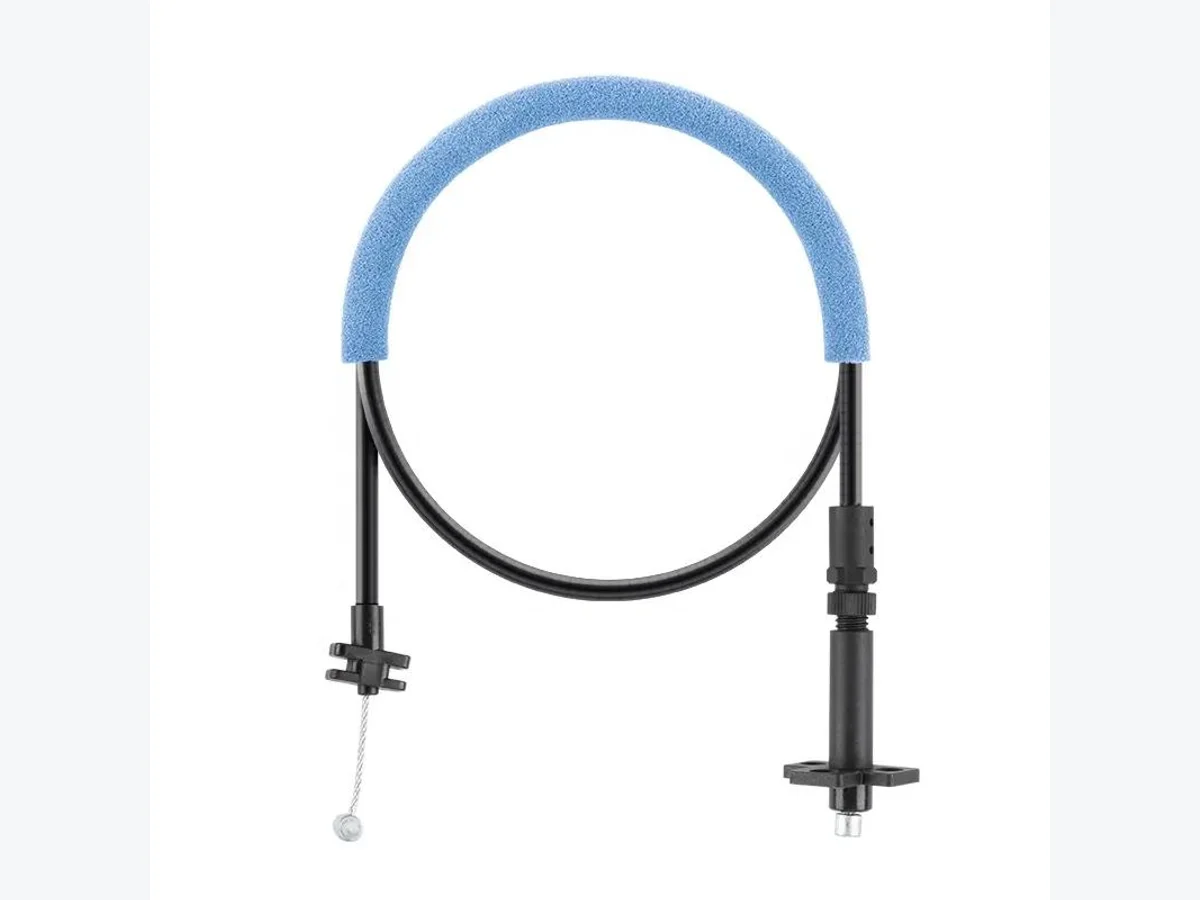

Bowden Cable Assembly transfers mechanical movement through an inner cable running inside a flexible outer housing. Buyers usually request this product when a cable must route around bends, pass through an equipment frame or replace an existing throttle, choke, brake or control cable. The quotation should focus on movement stroke, housing style and both terminal ends rather than a generic cable length alone.
Procurement Notes
- Best suited when movement must be guided through a flexible casing.
- Photos of the machine route help confirm bend direction and housing end caps.
- The sample or drawing should separate housing length from exposed inner cable length.
Buyer Confirmation Points
- Overall length, housing length and stroke
- Inner cable diameter and housing outside diameter
- Terminal A and terminal B geometry
- Routing path and application function
Related Specification Guide
If the cable must transmit movement in both directions, compare this page with Push Pull Control Cable Specifications for RFQ and Push Pull Control Cable. Buyers can also review Sample-Based Cable Matching before sending photos, measurements and application notes through the Request a Quote page.
Bowden Cable Size Confirmation
For a clearer Bowden cable RFQ, separate housing length, exposed inner cable length, inner cable diameter, housing outside diameter and working stroke. The Bowden Cable Sizes Guide explains these reference points and shows how to photograph terminals, casing ends and the equipment route.
Housing Length, Inner Cable and Stroke
Record the housing length and exposed inner cable length from labeled reference points. Then describe the working stroke or travel distance and the neutral position if the cable operates a lever or mechanism. A route sketch should show the casing ends, bend direction and the points where the housing is fixed.
Terminal Type and Routing

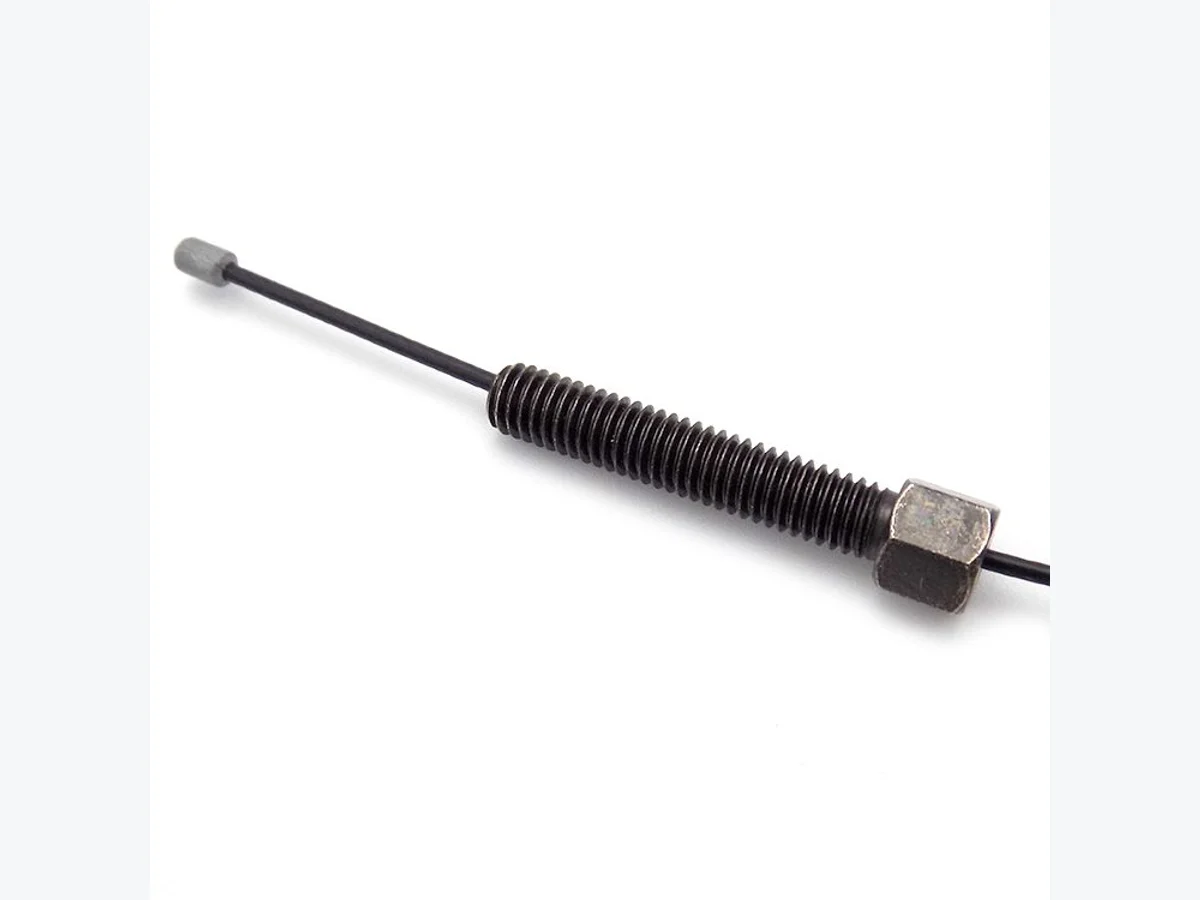

Photograph both inner cable terminals and casing-end hardware, including threaded adjusters, barrel or ball ends, eyelets, hooks, bend tubes, springs and ferrules. Include the equipment-side bracket or actuator so the terminal orientation and route are reviewed together.
Drawing or Sample Requirements
An OEM drawing should identify revision, mounting points, length references and terminal orientation. For a replacement Bowden cable, send the complete sample, close-ups of both ends, a measured sketch and the equipment route. If the sample is worn or stretched, mark the uncertain measurements rather than treating them as fixed.
Custom Bowden Cable RFQ Checklist
- Cable function and application environment
- Overall length, housing length, exposed inner cable and stroke
- Inner cable and housing diameters if known
- Terminal A, terminal B and casing-end fitting details
- Route photos, drawing or sample, quantity and packaging notes
Common Mistakes
Avoid describing a Bowden cable only by its overall length. Do not omit the casing end, assume both terminals match, or use a worn sample without noting its condition. Clear measurements and labeled photos help prevent a replacement cable from being matched to the wrong interface.
Related Products and RFQ
Compare Push Pull Control Cable, Brake Cable Assembly, Control & Brake Cables and End Fitting Installation. When the route and fittings are ready, use Request a Quote.
