Product Overview
Custom Wire Rope Assembly is the main RFQ path for buyers who need a cable built from a drawing, sample, product photo or application requirement. Instead of treating the product as a fixed catalog item, this page helps buyers define cable diameter, material, coating, length and end fittings before quotation.
Procurement Notes
- Best for projects where the buyer already has a drawing, sample or installation concept.
- The end fitting combination often controls the quotation path.
- Packaging by set or item code should be mentioned when there are multiple assembly versions.
Buyer Confirmation Points
- Application and product function
- Cable and coating details
- End fitting A and B
- Drawing, sample and quantity
Wire Rope Assembly Buyer Summary
Custom wire rope assembly requests are easiest to review when the cable, fitting arrangement and application are described as one assembly. Start with the function, cable diameter and construction if known, then identify the length reference points, coating or surface finish and the hardware at each end. A drawing, measured sketch or sample photo can support the first review when a catalogue name is not enough.
Made-to-Order Configuration Notes

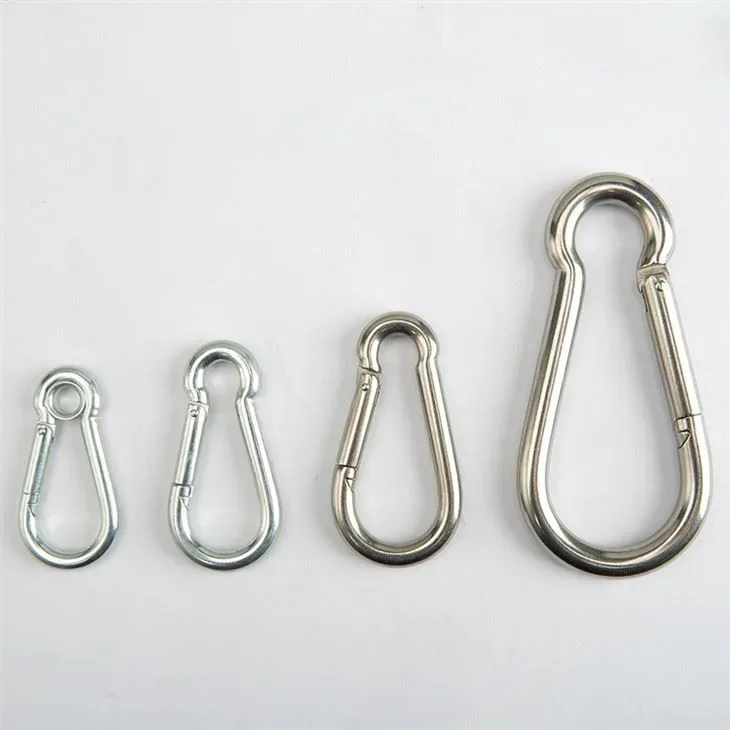

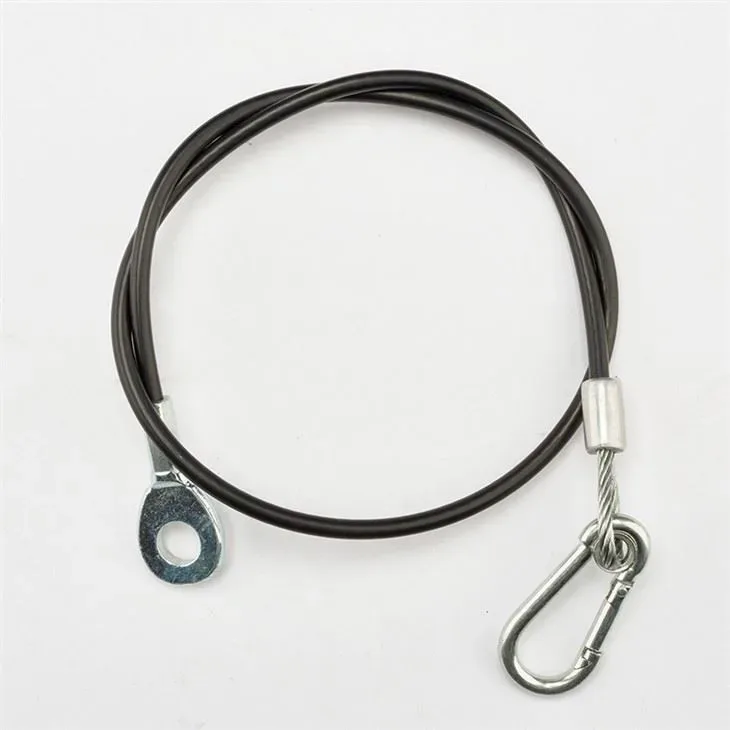

Common configurations include eye loops with sleeves or thimbles, hooks, carabiners, threaded terminals, stop sleeves and coated sections. The selected cable and fitting must be reviewed together, especially where a coating transition, ferrule, sleeve or thimble changes the finished assembly. These are configuration paths for an RFQ, not fixed specifications for every project.
Drawing or Sample Requirements
For drawing-based projects, mark cable diameter, overall length reference points, end A and end B, fitting orientation and any revision number. For sample-based replacement, photograph the full cable, both ends, the mating hardware and the application position. Note whether the sample is new, used, damaged or incomplete so approximate measurements are not mistaken for confirmed requirements.
Custom Wire Rope Assembly RFQ Checklist
- Product function and installation environment
- Cable diameter, construction, material or finish if known
- Overall length and measurement reference points
- End fitting A and end fitting B photos or drawings
- Coating, color, protection, quantity and packaging notes
Common Mistakes
Do not send only a cable length without the end fitting arrangement. Avoid combining a coating assumption with an unconfirmed cable material, and label each version when a project has multiple lengths or fitting combinations. Separate confirmed drawing details from questions that should be reviewed during the RFQ.
Related Products and RFQ
Review Wire Rope Assemblies, Wire Rope Assembly End Fittings Guide, Swaging and Crimping and End Fitting Installation. When the assembly information is organized, use Request a Quote.
