Product Overview

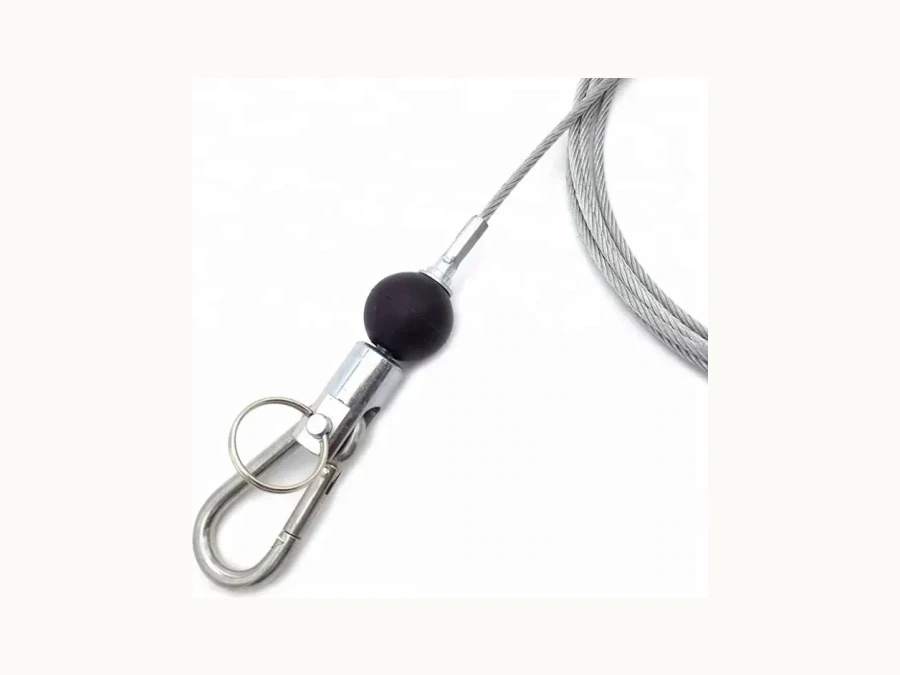

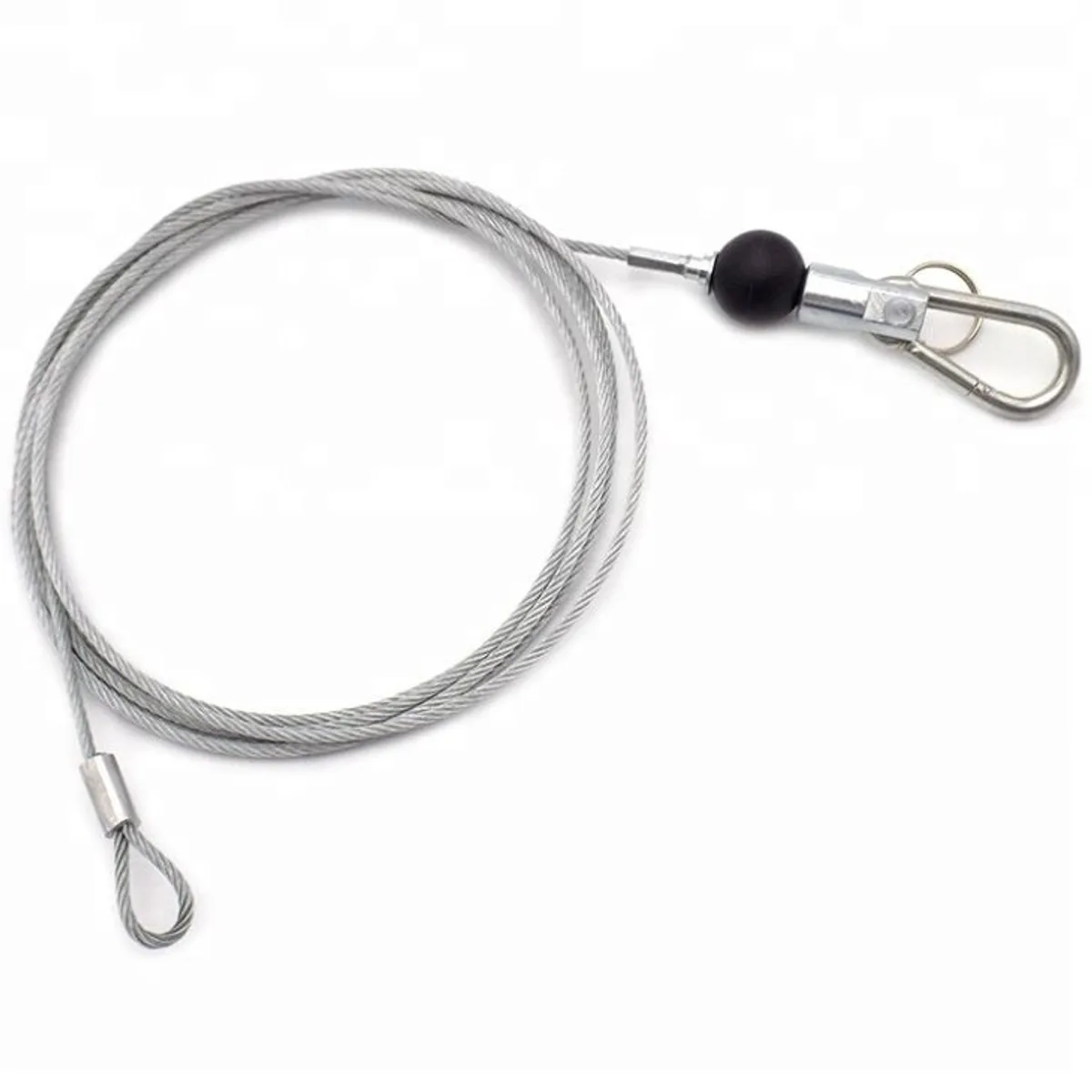

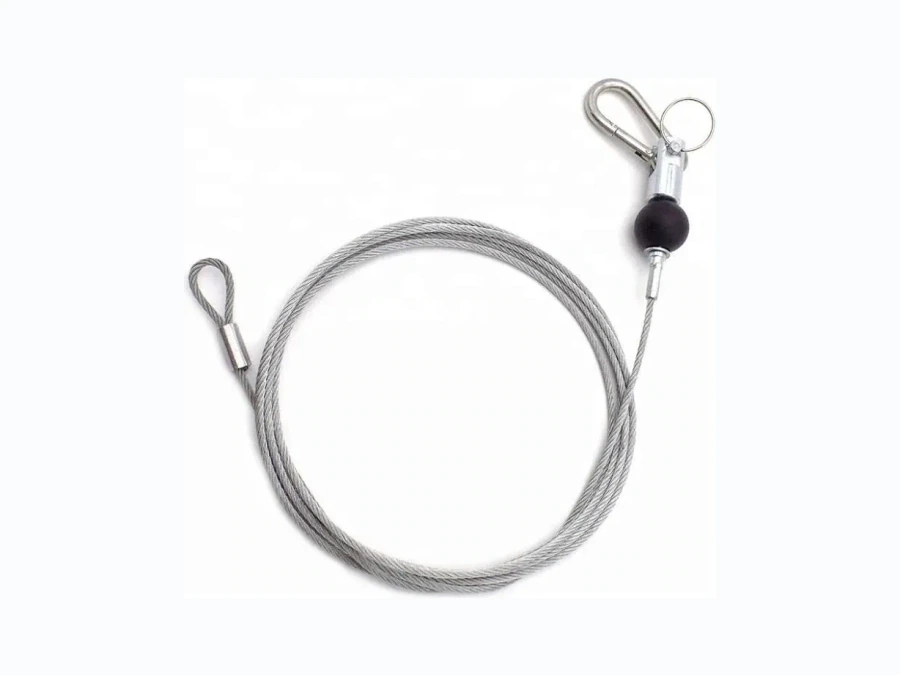

Weight Stack Cable Assembly is a fitness cable used in strength machines where cable movement transfers through pulleys to the weight stack. The product should be reviewed from the machine route and terminal details, because small differences in adjustment length or connection geometry can affect replacement fit.
Procurement Notes
- Selector-side and handle-side terminals should be identified separately.
- Coating thickness can matter when the cable passes through close pulley grooves.
- Repair buyers should keep broken cable sections for measurement whenever possible.
Buyer Confirmation Points
- Pulley route and cable path
- Adjustment and terminal dimensions
- Coating and finished diameter
- Machine model grouping
Buyer Search Notes
For weight stack cable replacement, provide machine route photos, selector-side connection, coating details and sample images. This page connects to Gym Cable Wire Rope Assembly and Sample-Based Cable Matching for RFQ preparation.
Use Gym & Fitness Cables as the category entry point and compare the Gym Equipment Cable Replacement Guide when the request includes several machine positions or a repeat repair batch.
Weight Stack Cable Buyer Summary
Weight stack cable assembly requests should identify the machine model, cable position and pulley route before selecting a replacement. Separate the selector-side connection from the handle-side or machine-frame connection, then record overall length, adjustment references, coating and terminal geometry.
Cable Length Measurement and Pulley Routing
Photograph the cable installed before removal when possible. Measure the removed cable between labeled terminal reference points and note any stretched, broken or bent section. Include pulley direction, anchor points, selector connection and guide clearance so the replacement cable can be reviewed as a complete route.
Coating and End Fitting Notes

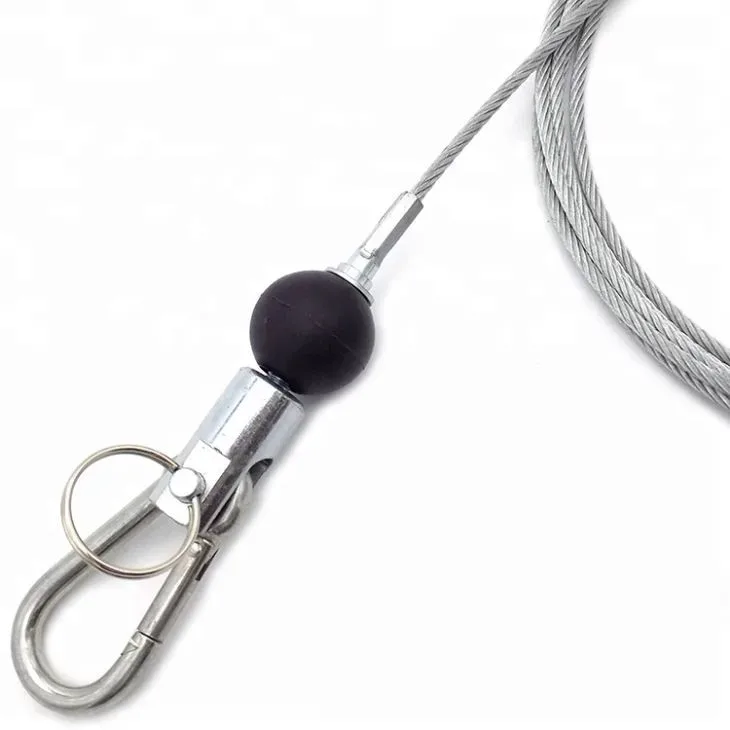

If the cable is coated, record the metal cable diameter and finished outside diameter separately when known. Identify ball ends, threaded terminals, stop sleeves, eye loops and machine-side pins as separate fitting details. A close-up of the mating hardware helps avoid confusing similar gym cable versions.
Replacement Cable RFQ Checklist
- Machine model, cable position and application
- Pulley route and selector or handle connection photos
- Overall length and measurement reference points
- Cable diameter, coating and finished diameter if known
- End A / End B fitting photos, quantity and packaging by model
Compare Gym & Fitness Cables, Gym Cable Wire Rope Assembly and Gym Equipment Cable Replacement Guide before sending a Request a Quote.
