Wire Rope Fittings

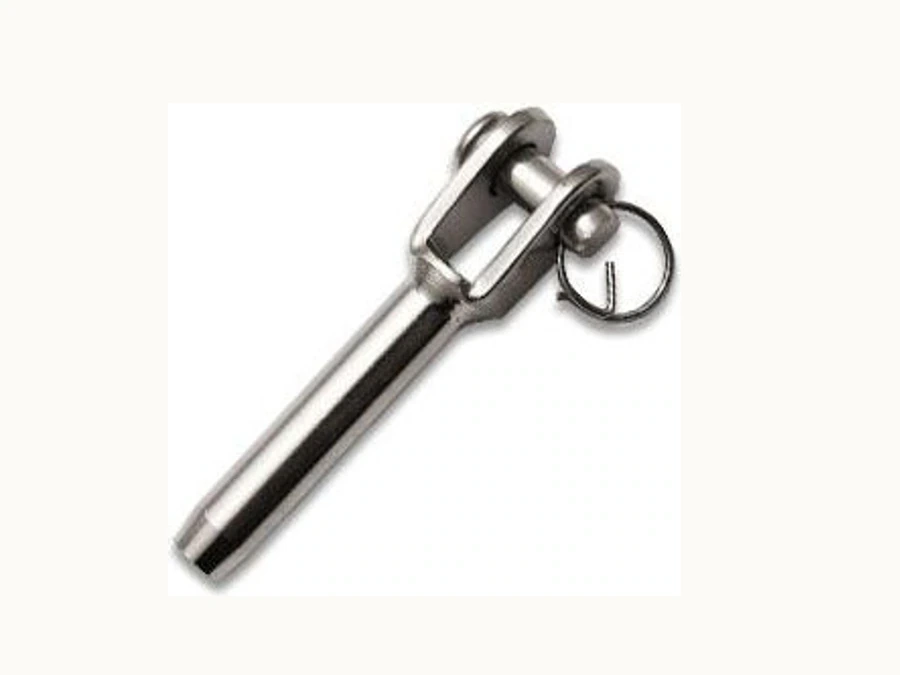

Swage Terminal

Swage terminal for wire rope assemblies, reviewed by compatible cable diameter, terminal drawing, thread or interface and finish requirement.

Procurement Focus

Terminal drawing, sample or close-up photos
Compatible cable diameter and swage section
Thread or connection interface
Loose terminal or installed cable assembly scope

Request a Quote RFQ Guide

Product Overview

Swage Terminal is an end fitting used with wire rope assemblies. The terminal geometry, thread or connection interface and compatible cable diameter should be defined from a drawing or sample before quotation.

Procurement Notes

Thread information should be measured or shown on a drawing when applicable.
The swage section and connection interface should not be confused.
Loose terminal supply and installed assembly supply should be specified separately.

Buyer Confirmation Points

Cable diameter and terminal dimensions
Thread or interface details
Material or surface finish
Loose or installed scope

Common Configurations

Configurations buyers often compare

Use these examples to describe the nearest assembly style before sending drawings, samples or photos.

Swage terminal for wire rope assembly end

Threaded terminal matched from drawing or sample

Terminal supplied loose for fitting review

Terminal installed on cable assembly

Custom terminal geometry based on buyer sample

Typical Applications

Application areas to confirm

Confirm the operating context before selecting the final cable, coating and fitting arrangement.

Cable loop protection

Wire rope assembly terminals

Suspension cable kits

Custom hardware projects

Drawing-based replacement fittings

Customization Options

Details that can be discussed for quotation

Final options depend on confirmed cable, dimensions, fittings and application requirements.

End Fitting Options

Connection details to review

Thimble
Sleeve or ferrule
Cable gripper
Swage terminal
Hook or shackle
Turnbuckle or tensioning fitting

RFQ Checklist

Information that improves quotation accuracy

Share the details available for your project; confirmed dimensions and fitting information can be reviewed from drawings, samples or photos.

Compatible cable diameter
Terminal drawing, sample or close-up photos
Thread size or connection interface if applicable
Swage section and overall terminal dimensions
Loose terminal or installed cable assembly scope
Quantity and packaging by terminal type

Related Services

Services that support this product request

Related Applications

Application pages connected to this product

Buying guides for this product family

FAQ

Swage Terminal purchasing questions

What is needed before quoting a swage terminal?

Provide compatible cable diameter, terminal dimensions, thread or interface details, material or finish notes and whether the terminal is supplied loose or installed.

Can swage terminals be matched from samples?

Yes. Samples and close-up photos help confirm terminal shape, thread and swage section dimensions.

Are threaded terminals available?

Threaded terminals can be reviewed when the buyer provides thread details or a sample.

Is a swage terminal a finished cable assembly?

It can be supplied as a fitting or as part of a finished cable assembly, depending on the RFQ scope.

What should be avoided in the RFQ?

Avoid saying only “terminal” without dimensions or photos because many terminal geometries look similar by name.

Custom quotation

Discuss Swage Terminal

Share dimensions, end fitting photos, drawings, samples, application details, quantity and packaging requirements for review.

Start an RFQ
